| ブランド名: | ZMSH |
| モデル番号: | SIC垂直炉チューブ |
| MOQ: | 25 |
| 価格: | by case |
| 配達時間: | 2〜4週間 |
| 支払条件: | T/T |

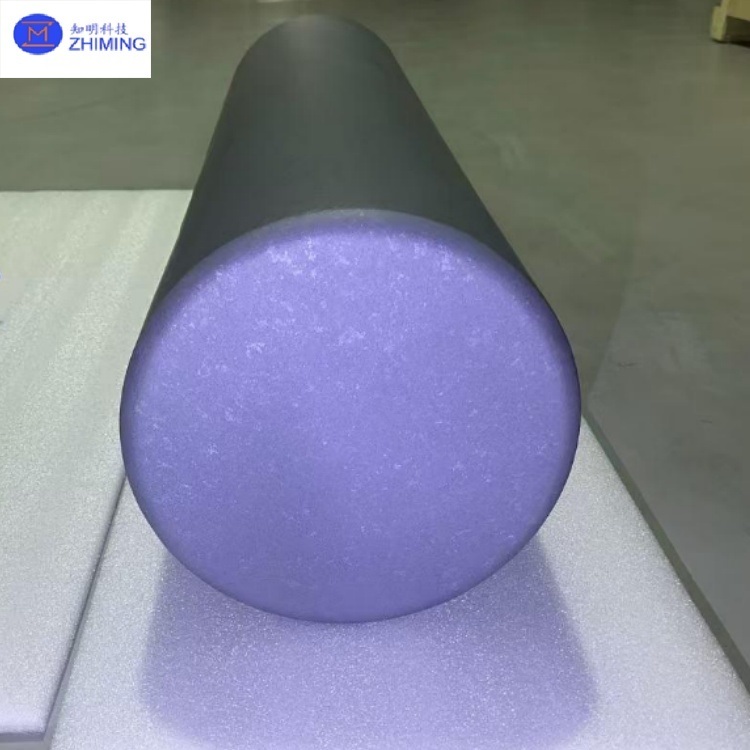

High-Purity SiC Vertical Furnace Tube High-Temperature Resistant
A Silicon Carbide (SiC) Vertical Furnace Tube is a high-performance ceramic structural component manufactured using processes such as reaction sintering or chemical vapor deposition (CVD). It is specifically designed for extreme environments in semiconductor manufacturing, metallurgy, and high-temperature industries. By leveraging the core material properties of silicon carbide—high hardness, high stiffness, low thermal expansion, high thermal conductivity, and excellent chemical stability—it maintains exceptional dimensional stability (with a coefficient of thermal expansion as low as 4.0-5.0×10⁻⁶/K) and structural integrity under conditions exceeding 1700°C, in corrosive atmospheres, and during rapid temperature changes. It provides a reliable material solution for high-temperature processes.
| Feature Category | Core Advantage | Key Parameters/Performance |
| High-Temperature Stability |
Extremely low thermal expansion, high temperature resistance
|
Coefficient of thermal expansion 4.0~5.0×10⁻⁶/K (-196°C to 1600°C), maximum service temperature >1700°C |
| Thermal Management |
Excellent thermal conductivity, rapid temperature equalization
|
Thermal conductivity ≥120 W/(m·K) (room temperature), ~45 W/(m·K) (1200°C) |
| Mechanical Strength |
High hardness, high stiffness, resistance to deformation
|
Mohs hardness 9.5, elastic modulus 410 GPa or higher |
| Chemical Inertness |
Resistance to acids, alkalis, and plasma erosion
|
Corrosion rate in strong acid (70% HNO₃) and strong alkali (45% KOH) <0.2 mg/(cm²·h) |
| Service Life & Reliability |
Thermal shock resistance, long life, low maintenance
|
Withstands thermal shock testing from 1200°C to room temperature (quenching) while maintaining structural integrity, and exhibits dimensional deviation <0.1mm after continuous operation for 2 years in industrial scenarios |
Q1: What is the primary application of a silicon carbide (SiC) vertical furnace tube?
A1: It is primarily used as a high-temperature reactor tube in semiconductor diffusion furnaces, CVD systems, and industrial kilns (e.g., for SiC/GaN epitaxial growth, oxidation, or annealing processes at 1500–1700°C), providing exceptional thermal stability and corrosion resistance in extreme environments.
Q2: Why choose silicon carbide over traditional materials for vertical furnace tubes?
A2: Silicon carbide offers superior high-temperature strength (up to 1700°C), extreme thermal shock resistance (low CTE ~4.5×10⁻⁶/K), and excellent chemical inertness (resisting acids, alkalis, and plasma erosion), ensuring long service life, minimal maintenance, and stable performance in corrosive atmospheres like HCl or metal vapors.
Tags: #SiC Vertical Furnace Tube, #High-Purity, #Customized, #SiC Ceramics, #High-Temperature Resistant
