プロダクト細部
Place of Origin: CHINA
ブランド名: ZMSH
証明: rohs
Model Number: CO₂ Laser Marking Machine
支払いと送料の条件
Minimum Order Quantity: 5
価格: by case
Delivery Time: 3-6 months
Payment Terms: T/T
Supply Ability: 1000pcs per month
LASER POWER: |
30W 60W 80W 100W 150W 250W |
LASER WAVE LENGTH: |
10.64μm |
POLARIZATION DIRECTION: |
>100:1 linear polarization |
CARVING SPEED: |
≤7000mm/s |
WORKING TEMPERATURE: |
0-50℃ |
WEIGHT: |
≈135KG |
LASER POWER: |
30W 60W 80W 100W 150W 250W |
LASER WAVE LENGTH: |
10.64μm |
POLARIZATION DIRECTION: |
>100:1 linear polarization |
CARVING SPEED: |
≤7000mm/s |
WORKING TEMPERATURE: |
0-50℃ |
WEIGHT: |
≈135KG |

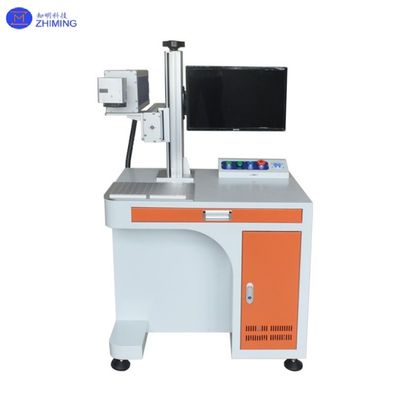

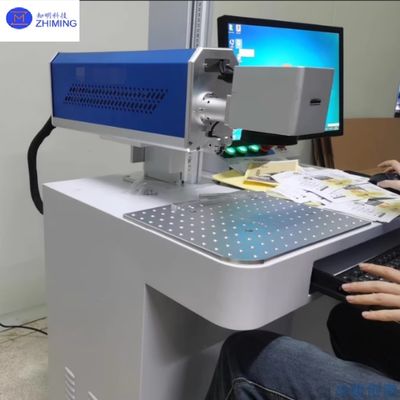

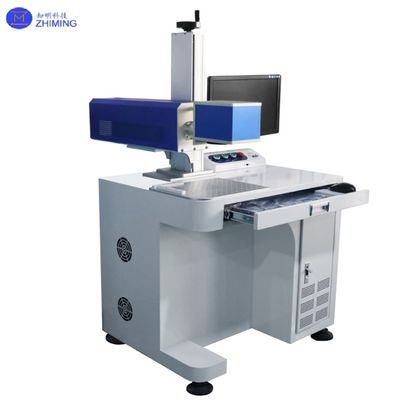

CO₂ Laser Marking Machine for Non-Metallic Materials with Operating Temperature 0-50°C
CO₂ Laser Marking Machines utilize gas laser technology to achieve high-precision industrial marking. The system employs a CO₂ gas mixture (with auxiliary gases like He and N₂) to generate a 10.64μm infrared laser beam through high-voltage discharge. This beam is amplified by a resonant cavity and focused via a galvanometric scanner and F-Theta lens into micro-sized spots (0.01-0.1mm diameter). Leveraging the photothermal effect, the laser vaporizes or carbonizes the material surface to create permanent marks. With modular design supporting flight marking (high-speed inline processing) and offline precision engraving, it is ideal for non-metallic materials (plastics, paper, glass, ceramics) and select metals (aluminum foil, stainless steel). Applications span pharmaceutical packaging anti-counterfeiting, tobacco product serialization, and electronic component coding.
|
LASER POWER
|
30W | 60W | 80W | 100W | 150W | 250W |
|
LASER WAVE LENGTH
|
10.64μm | |||||
|
FREQUENCY RANGE
|
1-25KHz | 1-100KHz | ||||
|
Power stability
|
±5% | <±10% | ||||
|
SPOT DIAMETER
|
1.8±0.2mm | X:1.4±0.3mm Y:2.2±0.4mm | ||||
|
BEAM QUALITY
|
<1.2 | <1.6 | ||||
|
POLARIZATION DIRECTION
|
>100:1 linear polarization | |||||
|
CARVING SPEED
|
≤7000mm/s | |||||
|
ENGRAVING RANGE
|
110mm*110mm (Custom optional) | |||||
|
ENGRAVING DEPTH
|
0.1mm-2.0mm (Depending on the material) | |||||
|
WORKING TEMPERATURE
|
0-50℃ | |||||
|
COOLING WAY
|
Air cooling/Water cooling | |||||
|
WORK ENVIRONMENT
|
Dry, clean, and ventilated | |||||
|
POWER SUPPLY
|
AC220V/50Hz (Custom optional) | |||||
|
POWER CONSUMPTION
|
≥0.6KW | ≥1KW | ≥1.6KW | |||
|
WEIGHT
|
≈135KG | |||||
1. Laser Generation:
2. Material Processing:
1. Superior Performance:
Precision: Repeatability positioning accuracy ±0.001mm, enabling micro-marking (e.g., 0.05mm characters on chips).
Stability: Imported RF metal lasers (e.g., Coherent,锐科) with 45,000-hour lifespan and air-cooled design for maintenance-free operation.
2. Material Versatility:
Broad Compatibility: Supports 90% non-metals (ABS, PVC, ceramics) and treated metals (e.g., aluminum foil).
Flexible Modes: Adjustable pulse frequency (10kHz-200kHz) for deep engraving (>2mm) or high-speed marking (8,000mm/s).
3. Economic Efficiency:
Zero Consumables: Eliminates ink/toner costs, reducing operational expenses by 90% vs. traditional printing.
Low Energy Consumption: 1.5-3kW total power (40% energy savings vs. water-cooled systems).
4. Intelligent Integration:
Compatible with AutoCAD/CorelDRAW for direct PLT/DXF file imports.
Built-in barcode/QR code generators with ERP system integration for automated batch tracking.
1. Packaging Industry:
2. Electronics & Semiconductors:

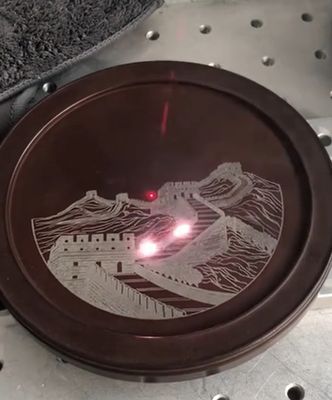

3. Art & Construction:
4. Industrial Manufacturing:
CO₂ Laser Marking Machines, with their 10.64μm wavelength absorption efficiency, non-contact precision, and modular scalability, have become indispensable in precision manufacturing. Ongoing advancements such as CO₂ RF tube adoption and AI-powered path optimization are expanding their applications to ultra-thin materials (PET films) and dynamic production line marking.
1. Q: What industries use CO2 laser marking machines most?
A: Packaging (food/pharma labels), electronics (circuit boards), automotive (tool codes), and crafts (wood/textile engraving) leverage CO2 lasers for permanent, high-contrast marks on plastics, glass, and organic materials .
2. Q: Why choose CO2 lasers over fiber lasers?
A: CO2 lasers excel in non-contact precision for fragile materials (e.g., leather, ceramics) and offer 0.01mm resolution, while fiber lasers suit metals but lack organic material versatility .
Tags: #CO₂ Laser Marking Machine, # CO₂ Laser, #Fully Automatic, #Image & Text Engraving, #Non-Metallic Materials, #Operating Temperature 0-50°C
