| Material: | High-purity single-crystal sapphire (Al₂O₃) | Inner Diameter (ID): | 0.1mm ~ 5mm (customizable) |
|---|---|---|---|
| Outer Diameter (OD): | 0.3mm ~ 10mm (customizable) | Length: | 5mm ~ 200mm (extended lengths available) |
| Wall Thickness: | 0.05mm ~ 2mm | Applications: | Semiconductor Manufacturing,Lasers & Optical Devices |
| ハイライト: | Corrosion-Resistant Sapphire Capillary Tube,Single Crystal Sapphire Capillary Tube,Al₂O₃ Sapphire Capillary Tube |
||

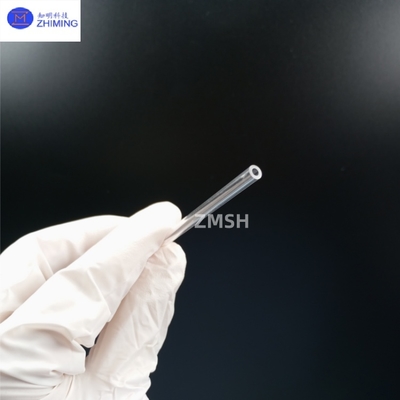

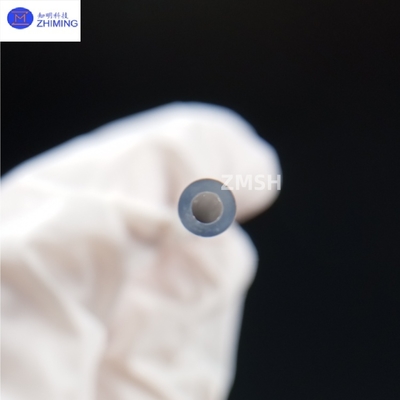

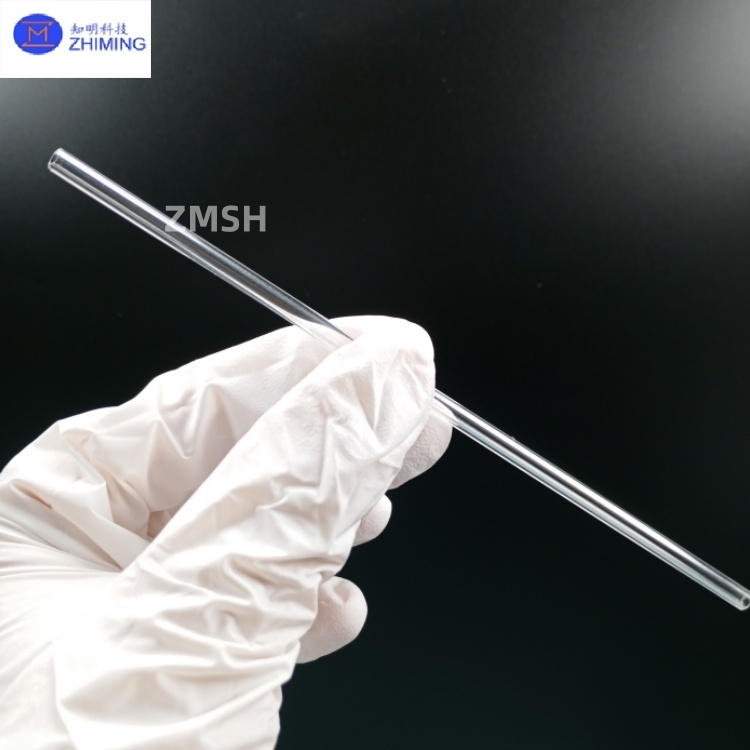

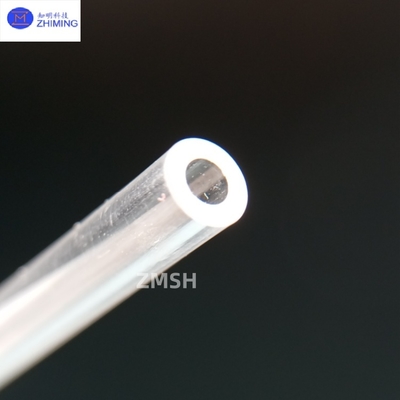

Sapphire Capillary Tube Al₂O₃ Single Crystal Corrosion-Resistant
Sapphire Capillary Tubes are made from high-purity Al₂O₃ single crystal, offering with extreme hardness (Mohs 9, second only to diamond), high-temperature resistance (melting point 2050°C), superior corrosion resistance,excellent optical transmission (UV to IR spectrum), outstanding mechanical strength. These properties make them ideal for high-end precision instruments and semiconductor equipment.
ZMSH are a high-tech enterprise specializing in the R&D and production of sapphire materials, with nearly a decade of manufacturing experience in sapphire products. ZMSH specializes in producing semiconductor-grade sapphire materials, including sapphire wafers, sapphire tubes, sapphire rods, sapphire capillary tube, and sapphire optical windows. These products are widely used in semiconductors, optics, LEDs, lasers, medical devices, and scientific research. With advanced manufacturing processes and a strict quality control system, we provide customers with high-precision, high-performance sapphire products and customized solutions.
|
Parameter
|
Specification Range
|
|
Material
|
High-purity single-crystal sapphire (Al₂O₃)
|
|
Inner Diameter (ID)
|
0.1mm ~ 5mm (customizable)
|
|
Outer Diameter (OD)
|
0.3mm ~ 10mm (customizable)
|
| Length |
5mm ~ 200mm (extended lengths available)
|
|
Wall Thickness
|
0.05mm ~ 2mm
|
|
Surface Finish
|
Ra ≤ 0.2μm (optical polishing available)
|
|
Temperature Range
|
-200°C ~ 1900°C (long-term stability)
|
|
Transmission Range
|
0.15μm ~ 5.5μm (UV to mid-IR)
|
1. Ultra-High Hardness & Wear Resistance
2. Exceptional Corrosion Resistance
3. High-Temperature Stability
4. High Optical Transparency & Low Loss
5. Precision Machining Capability
①Semiconductor Manufacturing
②Lasers & Optical Devices
③Medical & Life Sciences
④Research & Precision Instruments
⑤Industrial Sensors
For product details or samples, contact us today!
1. Q: What is a sapphire capillary tube used for?
A: Sapphire capillary tubes are primarily used in semiconductor MOCVD systems for high-purity gas delivery, laser applications requiring UV-IR transparency, and medical devices needing biocompatible fluid channels.
2. Q: Why choose sapphire over quartz for capillary tubes?
A: Sapphire capillary tubes outperform quartz with 9x higher hardness, 3x better thermal conductivity (35W/mK vs 1.4W/mK), and superior chemical resistance in harsh semiconductor processes.
Tags: #Sapphire Capillary Tube, # Al₂O₃ Single Crystal, #Al₂O₃ 99.999%, #Transmittance≥80%, #Precision Cutting, #Corrosion-Resistant, #Gas Delivery in MOCVD Equipment, #Semiconductor Manufacturing Applications
